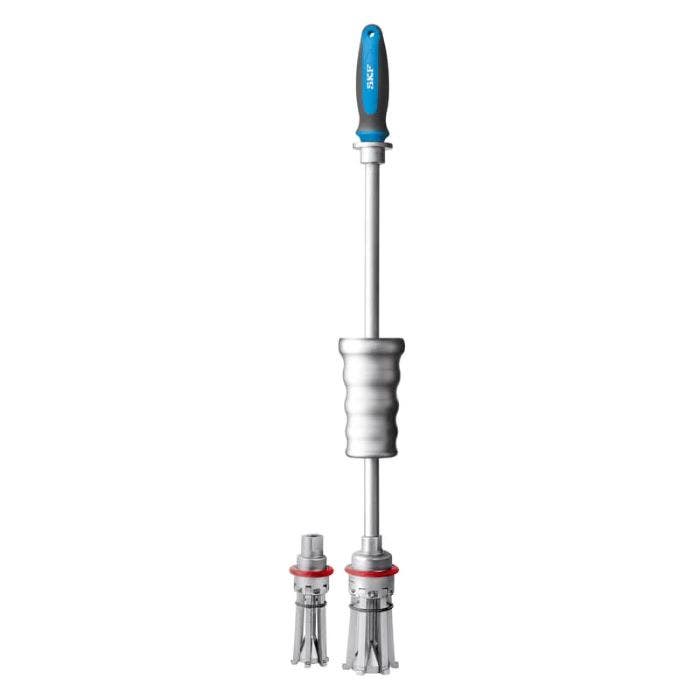

SKF TMIP 30-60 Internal Bearing Puller Kit
The SKF Internal Bearing Puller Kit TMIP 30-60 is designed for dismounting bearings from housings, where the fit is on the outer ring. The puller is constructed for optimum strength and durability and various extractors are included to support a wide range of bearing bore diameters. A sliding hammer allows high impact forces to be applied and is ergonomically designed to enhance user safety. This set features a patented SKF design with spring-loaded extractors to make dismounting jobs easier and faster.
Features:
- Unique patented SKF design makes dismounting easier and helps to save time
- Spring-loaded extractor can be quickly and easily fitted to the inner ring in just one movement
- Claw design provides a strong and secure grip behind the inner ring, allowing a high pulling force to be applied
- Suitable for bore diameters 30 - 60 mm
- Supplied in a sturdy carrying case
Specifications:
- Maximum bearing width per extractor : TMIP E30-40: >35 mm;TMIP E45-60: >64 mm;
- Required space behind bearing per extractor : TMIP E30-40: 11.5 mm;TMIP E45-60: 15 mm;
- Maximum housing depth per extractor :TMIP E30-40: 97 mm;TMIP E45-60: 102 mm
| Product description | The SKF Internal Bearing Puller Kit TMIP 30-60 is designed for dismounting bearings from housings, where the fit is on the outer ring. The puller is constructed for optimum strength and durability and various extractors are included to support a wide range of bearing bore diameters. A sliding hammer allows high impact forces to be applied and is ergonomically designed to enhance user safety. This set features a patented SKF design with spring-loaded extractors to make dismounting jobs easier and faster. Features:
Specifications:
|
|---|---|
| Weight (kg) | 5.420000 |
