SKF Belt Alignment Tool TKBA 40

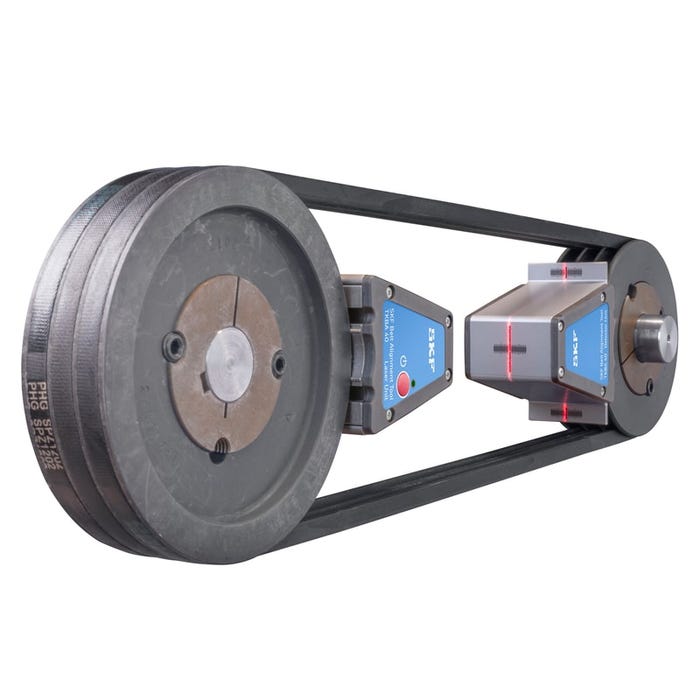

The SKF Belt Alignment Tool TKBA 40 aligns V-belt pulleys in the grooves. V–guides and powerful magnets allow the TKBA 40 to be fitted in the grooves of the pulley. With only two components, a laser–emitting unit and a receiver unit, the belt alignment tool is easy to use and allows fast and accurate belt alignments. The three-dimensional target area on the receiver unit help the easy detection of misalignment as well as its nature; whether it is horizontal, vertical, parallel or a combination of all three.

Features:

• Powerful magnets allow fast and easy attachment
• Three-dimensional target area simplifies detection and correction of misalignments
• Facilitates simultaneous adjustment of tension and alignment
• V-guides included for a wide range of V-belt pulleys
• Aligns grooves of a V-belt pulley rather than its face, allowing optimum alignment of pulleys of unequal width or with dissimilar faces
• Special side adaptor for alignments of multi-ribbed and timing belt pulleys as well as sprockets is available as accessory

Specifications:

• Laser type: Visible red line laser
• Measurement distance: 50 mm to 6 m
• Measurement accuracy angular: Better than 0.02° at 2 m
• Measurement accuracy offset: Better than 0.5 mm
• Calibration certificate: Valid for two years
