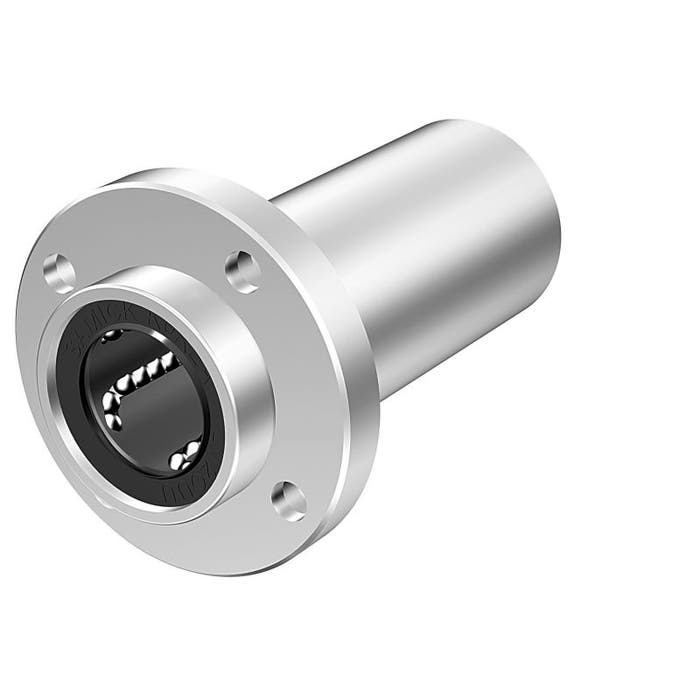

Samick LMFP25LUU Circular Pilot Flanged Linear Bushing
SGD89.13
SKU
LMFP-25.LUU-SMK
Samick LMFP25LUU Circular Pilot Flanged Linear Bushing .Reliable quality for your needs. Buy now!!
Samick Pilot Flanged Type Linear Bushing
Features:
- With a variety of design and ease of installation
- When the load of moving body passed directly to the Linear Bushing the Pilot Flange can get more stable movement and being the most suitable for moment load
- Installed without housing
- Can be selected resin retainer (standard), and steel retainer (for high temperature & vacuum)
- Corrosion-resisting: the nickel-plated, Raydent treatment of Oute-sleeves, stainless steel ball
| Bore diameter | 25 mm |
|---|---|
| Outside diameter | 40 mm |
| Overall length | 112 mm |
| Outer sleeve | High carbon steel (SUJ2) |
| Seal type | Contact seal on both sides |
| Retainer | Polymer |
| Ball material | High carbon steel (SUJ2) |
| Dynamic load rating | 1560 N |
| Static load rating | 3140 N |
| Product description | Samick Pilot Flanged Type Linear Bushing Features:
|
| Weight (kg) | 0.515000 |
