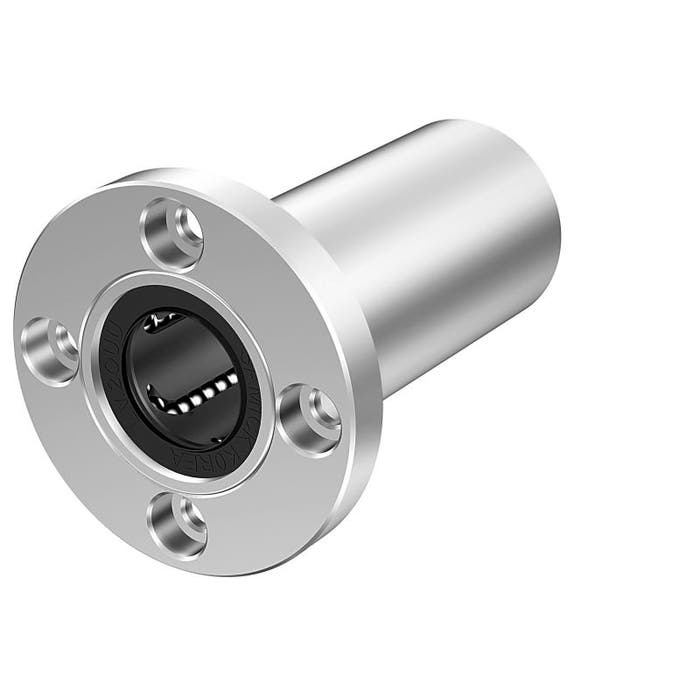

Samick LMEF50LUU Circular Flanged Linear Bushing
SGD240.91
SKU
LMEF-50.LUU-SMK
Samick LMEF50LUU Circular Flanged Linear Bushing .Reliable quality for your needs. Buy now!!
Samick Flanged Type Linear Bushing
Features:
- With a variety of design and ease of installation
- Used in case of passing a load of moving body directly to the Linear Bushing
- Installed without housing
- Can be selected resin retainer (standard), and steel retainer (for high temperature & vacuum)
- Corrosion-resisting: the nickel-plated, Raydent treatment of Outer-sleeves, stainless steel ball
| Bore diameter | 50 mm |
|---|---|
| Outside diameter | 75 mm |
| Overall length | 192 mm |
| Outer sleeve | High carbon steel (SUJ2) |
| Seal type | Contact seal on both sides |
| Retainer | Polymer |
| Ball material | High carbon steel (SUJ2) |
| Dynamic load rating | 6080 N |
| Static load rating | 15900 N |
| Product description | Samick Flanged Type Linear Bushing Features:
|
| Weight (kg) | 3.500000 |
