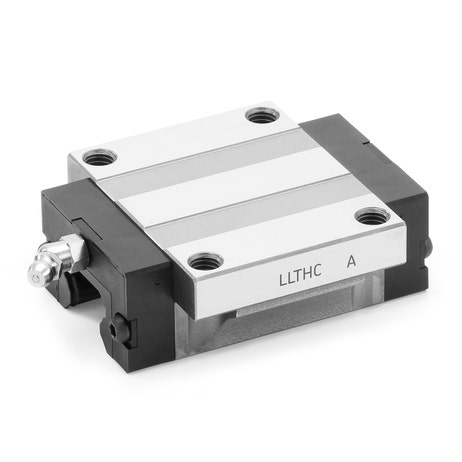

Ewellix LLTHC 35 A T1 P3 Flanged Carriage
SGD186.84
SKU
LLTHC-35.AT1P3-ELX
Ewellix LLTHC 35 A T1 P3 Flanged Carriage. Reliable quality for your needs. Buy now!!
| Overall width | 100 mm |
|---|---|
| Assembly height | 48 mm |
| Overall length | 114 mm |
| Vertical distance between mounting holes | 82 mm |
| Horizontal distance between mounting holes | 62 mm |
| Accuracy class | P3 Medium |
| Preload Class | T1 Light perload |
| Carriage style | A - Flanged carriage, standard length, standard height |
| Dynamic load rating | 34700 N |
| Static load rating | 54650 N |
| Weight (kg) | 1.600000 |
