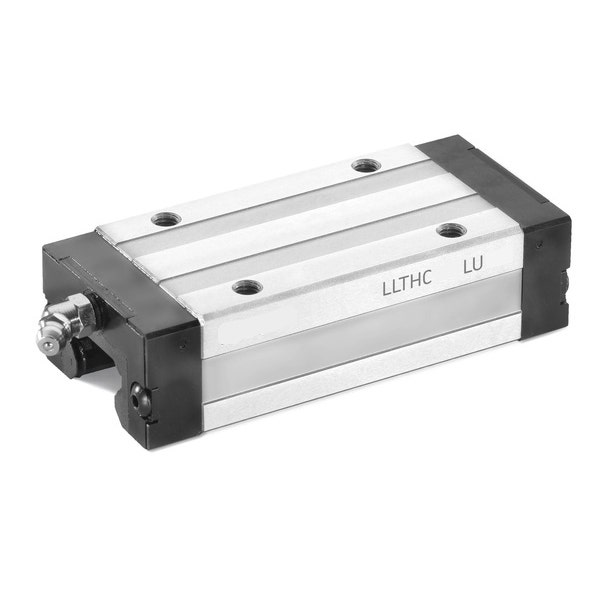

Ewellix LLTHC 30 LU T1 P5 Slim-Line Carriage
SGD210.20
SKU
LLTHC-30.LUT1P5-ELX
Ewellix LLTHC 30 LU T1 P5 Slim-Line Carriage. Reliable quality for your needs. Buy now!!
| Overall width | 60 mm |
|---|---|
| Assembly height | 42 mm |
| Overall length | 125.4 mm |
| Vertical distance between mounting holes | 40 mm |
| Horizontal distance between mounting holes | 60 mm |
| Accuracy class | P5 Standard |
| Preload Class | T1 Light perload |
| Carriage style | LU - Slim-line carriage, extended length, standard height |
| Dynamic load rating | 33900 N |
| Static load rating | 60800 N |
| Weight (kg) | 0.820000 |
