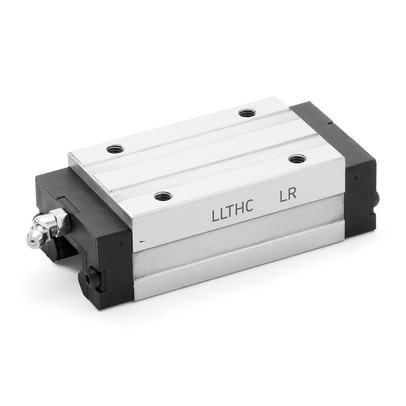

Ewellix LLTHC 25 LR T1 P3 Slim-Line Carriage
SGD158.87
SKU
LLTHC-25.LRT1P3-ELX
Ewellix LLTHC 25 LR T1 P3 Slim-Line Carriage. Reliable quality for your needs. Buy now!!
| Overall width | 48 mm |
|---|---|
| Assembly height | 40 mm |
| Overall length | 104.1 mm |
| Vertical distance between mounting holes | 35 mm |
| Horizontal distance between mounting holes | 50 mm |
| Accuracy class | P3 Medium |
| Preload Class | T1 Light perload |
| Carriage style | LR - Slim-line carriage, extended length, extended height |
| Dynamic load rating | 24400 N |
| Static load rating | 44600 N |
| Weight (kg) | 0.560000 |
