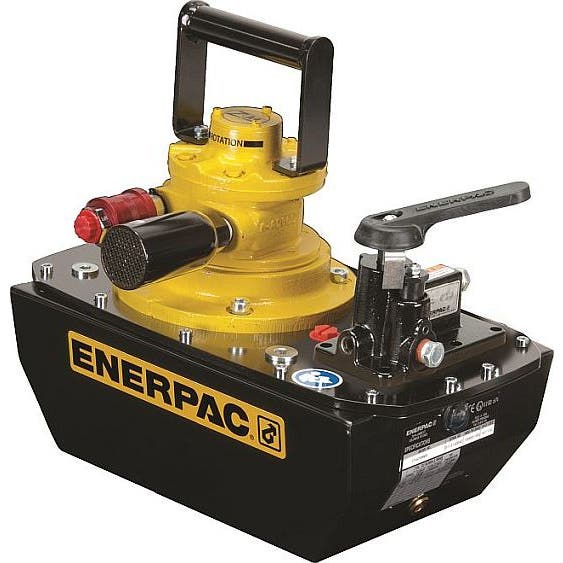

Enerpac ZA4204MX Air Hydraulic Pump
SGD8,903.77
SKU
ENP-ZA-4204MX
EnerpacZA4204MX, Two Speed, Air Hydraulic Pump, 3/2 Manual Valve, 4,0 litres Usable Oil, For use with Single-Acting Cylinders.Reliable quality for your needs. Buy now!!
Model : ZA4204MX
- ATEX 95 certified for use in potentially explosive atmospheres
- The Enerpac ZA4-series air pumps are tested and certified according to the Equipment Directive 94 / 9 / EC ATEX Directive for equipment and protective systems intended for use in potentially explosive atmospheres
- Features Z-Class high efficiency pump design, higher oil flow and bypass pressure
- Two-speed operation reduces cycle time for improved productivity
- User adjustable relief valve built-in on manual valves. Oil ports on valves are 3/8" NPTF
- Optional heat exchanger warms exhaust air to prevent freezing and cools the oil)
- Oil level indicators on 4 and 6,6 litres reservoirs
Maximum Operating Pressure | 10000 PSI |
---|---|
Cylinder compatibility | Single-Acting |
Reservoir capacity | 231 in³ |
Usable oil capacity | 4 ltr |
Maximum flow at rated pressure | 80 in3/min |
Output flow rate (in³/min) 100 psi | 850 |
Output flow rate (in³/min) 700 psi | 675 |
Output flow rate (in³/min) 5000 psi | 110 |
Output flow rate (in³/min) 10000 psi | 80 |
Air consumption (scfm) | 20 - 100 |
Air pressure range (psi) | 60 - 100 |
Sound level (dBa) | 94 - 97 |
Valve function | Advance / Retract |
Valve operation | Manual |
Valve type | 3-way, 2-position |
Power source | Air |
Product description | Model : ZA4204MX
|
Weight (kg) | 42.728400 |
