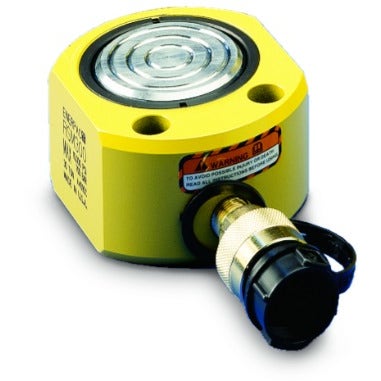

Enerpac RSM300 Low Height Hydraulic Cylinder
SGD1,405.36
SKU
ENP-RSM-300
Enerpac RSM300 30 Ton Capacity, 0.5 in Stroke. Single-Acting Low Height Hydraulic Cylinder Reliable quality for your needs. Buy now!!
Model : RSM300
- Compact, flat design for use where other cylinders will not fit
- Mounting holes permit easy fixturing
- Baked enamel finish for increased corrosion resistance
- CR400 coupler and dust cap included
- Hard chrome plated high-quality steel plungers
- Grooved plunger ends require no saddle
- Single-acting spring return
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 30 Ton |
| Stroke | 0.5 in |
| Collapsed height | 2.31 in |
| Extended height | 2.81 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 6.49 in² |
| Oil capacity | 3.25 in³ |
| Surface treatment | Paint |
| Cylinder bore diameter | 2.88 in |
| Plunger diameter | 2.5 in |
| Base to advance port | 0.75 in |
| Saddle protrusion from plunger | 0.08 in |
| Weight (kg) | 4.227000 |
