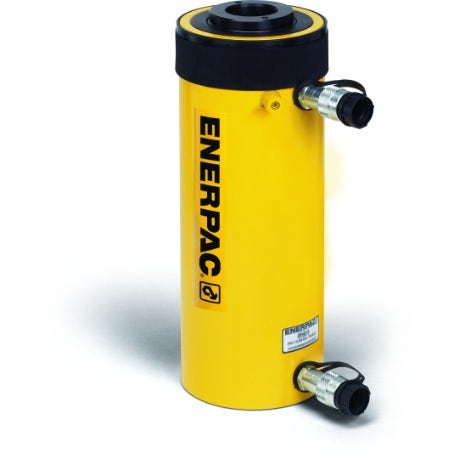

Enerpac RRH3010 Hollow Plunger Hydraulic Cylinder
SGD6,098.12
SKU
ENP-RRH-3010
Enerpac RRH3010 30 Ton Capacity, 10.13 in Stroke. Double-Acting Hollow Plunger Hydraulic Cylinder Reliable quality for your needs. Buy now!!
Model : RRH3010
- Relief valves prevent damage in case of over-pressurization
- Baked enamel finish for increased corrosion resistance
- Collar threads enable easy fixturing
- Double-acting operation for fast retraction
- Nickel-plated, floating center tube increases product life
- Hollow plunger allows for both pull and push forces
- CR400 couplers and dust caps included on all models
- Plunger wiper reduces contamination, extending cylinder life
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 30 Ton |
| Stroke | 10.13 in |
| Collapsed height | 17 in |
| Extended height | 27.13 in |
| Return type | Double-Acting |
| Plunger type | Hollow |
| Body material | Steel |
| Effective area | 7.22 in² |
| Oil capacity | 73.12 in³ |
| Surface treatment | Paint |
| Cylinder outside diameter | 4.5 in |
| Cylinder bore diameter | 3.5 in |
| Plunger diameter | 2.5 in |
| Base to advance port | 1 in |
| Saddle diameter | 2.5 in |
| Saddle protrusion from plunger | 0.38 in |
| Collar thread | 4 1/2" - 12 |
| Collar thread length | 1.66 in |
| Product description | Model : RRH3010
|
| Weight (kg) | 26.409000 |
