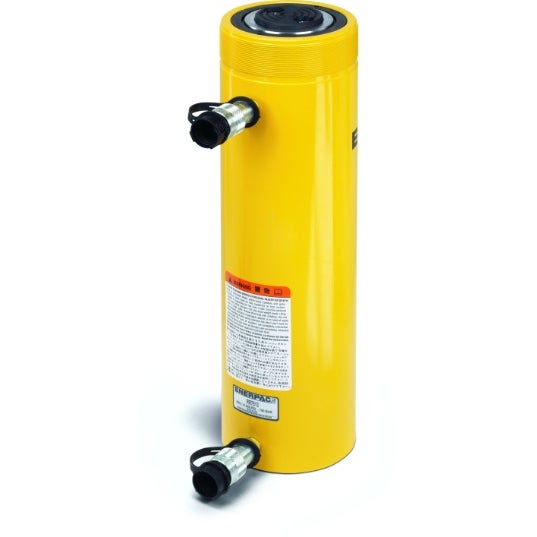

Enerpac RR7513 General Purpose Hydraulic Cylinder
SGD8,282.30
SKU
ENP-RR-7513
Enerpac RR7513 75 Ton Capacity, 13.13 in Stroke. Double-Acting General Purpose Hydraulic Cylinder Reliable quality for your needs. Buy now!!
Model : RR7513
- Collar threads, plunger threads and base mounting holes for easy fixturing
- Baked enamel finish for increased corrosion resistance
- Removable hardened saddles protect plunger during lifting and pressing
- Built-in safety valve prevents accidental over-pressurization
- Plunger wiper reduces contamination, extending cylinder life
- CR400 included on all models
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 75 Ton |
| Stroke | 13.13 in |
| Collapsed height | 20.69 in |
| Extended height | 33.81 in |
| Return type | Double-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 15.92 in² |
| Oil capacity | 209 in³ |
| Surface treatment | Paint |
| Optional tilt saddle addition to collapsed height | 0.59 in |
| Optional tilt saddle diameter | 2.81 in |
| Cylinder outside diameter | 5.75 in |
| Cylinder bore diameter | 4.5 in |
| Plunger diameter | 3.75 in |
| Base to advance port | 1.19 in |
| Saddle diameter | 2.8 in |
| Saddle protrusion from plunger | 0.25 in |
| Saddle maximum tilt angle radius | 5 ° |
| Collar thread | 5 3/4" - 12 |
| Collar thread length | 1.5 in |
| Product description | Model : RR7513
|
| Weight (kg) | 68.141000 |
