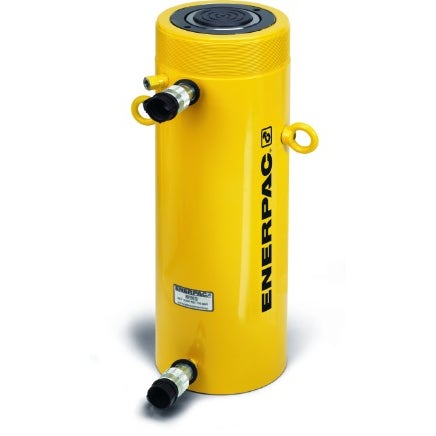

Enerpac RR2006 General Purpose Hydraulic Cylinder
SGD11,777.96
SKU
ENP-RR-2006
Enerpac RR2006 200 Ton Capacity, 6 in Stroke. Double-Acting General Purpose Hydraulic Cylinder Reliable quality for your needs. Buy now!!
Model : RR2006
- Collar threads, plunger threads and base mounting holes for easy fixturing
- Baked enamel finish for increased corrosion resistance
- Removable hardened saddles protect plunger during lifting and pressing
- Built-in safety valve prevents accidental over-pressurization
- Plunger wiper reduces contamination, extending cylinder life
- CR400 included on all models
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 200 Ton |
| Stroke | 6 in |
| Collapsed height | 16.94 in |
| Extended height | 22.94 in |
| Return type | Double-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 44.21 in² |
| Oil capacity | 265.28 in³ |
| Surface treatment | Paint |
| Cylinder outside diameter | 9.75 in |
| Cylinder bore diameter | 7.5 in |
| Plunger diameter | 5.25 in |
| Base to advance port | 2.25 in |
| Saddle diameter | 5.25 in |
| Saddle protrusion from plunger | 0.88 in |
| Base mounting holes bolt circle | 5 in in |
| Base mounting holes thread | 1" - 8 |
| Base mounting holes thread depth | 1 in |
| Product description | Model : RR2006
|
| Weight (kg) | 146.105000 |
