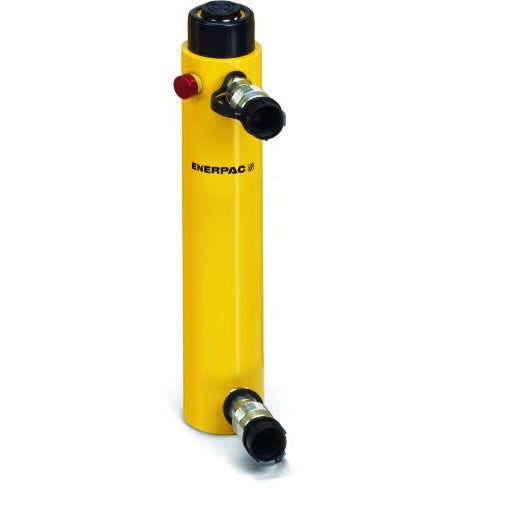

Enerpac RR1012 General Purpose Hydraulic Cylinder
SGD2,390.01
SKU
ENP-RR-1012
Enerpac RR1012 10 Ton Capacity, 12 in Stroke. Double-Acting General Purpose Hydraulic Cylinder Reliable quality for your needs. Buy now!!
Model : RR1012
- Collar threads, plunger threads and base mounting holes for easy fixturing
- Baked enamel finish for increased corrosion resistance
- Removable hardened saddles protect plunger during lifting and pressing
- Built-in safety valve prevents accidental over-pressurization
- Plunger wiper reduces contamination, extending cylinder life
- CR400 included on all models
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 10 Ton |
| Stroke | 12 in |
| Collapsed height | 18 in |
| Extended height | 30 in |
| Return type | Double-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 2.23 in² |
| Oil capacity | 26.8 in³ |
| Surface treatment | Paint |
| Optional tilt saddle addition to collapsed height | 0.55 in |
| Optional tilt saddle diameter | 1.38 in |
| Cylinder outside diameter | 2.88 in |
| Cylinder bore diameter | 1.69 in |
| Plunger diameter | 1.38 in |
| Base to advance port | 1.44 in |
| Saddle diameter | 1.38 in |
| Saddle protrusion from plunger | 0.24 in |
| Saddle maximum tilt angle radius | 5 ° |
| Collar thread | 2 1/4" - 14 |
| Collar thread length | 1.06 in |
| Product description | Model : RR1012
|
| Weight (kg) | 14.345000 |
