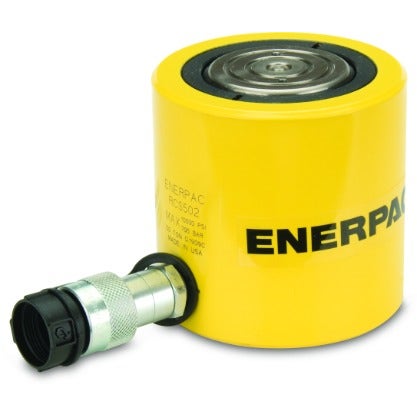

Enerpac RCS302 Low Height Hydraulic Cylinder
SGD1,146.70
SKU
ENP-RCS-302
Enerpac RCS302 30 Ton Capacity, 2.44 in Stroke. Single-Acting Low Height Hydraulic Cylinder Reliable quality for your needs. Buy now!!
Model : RCS302
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- CR400 coupler and dust cap included on all models
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
- Single-acting spring return
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 30 Ton |
| Stroke | 2.44 in |
| Collapsed height | 4.63 in |
| Extended height | 7.06 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 6.49 in² |
| Oil capacity | 15.82 in³ |
| Surface treatment | Paint |
| Optional tilt saddle addition to collapsed height | 0.98 in |
| Cylinder outside diameter | 4 in |
| Cylinder bore diameter | 2.88 in |
| Plunger diameter | 2.62 in |
| Base to advance port | 0.75 in |
| Saddle diameter | 1.97 in |
| Saddle protrusion from plunger | 0.13 in |
| Saddle maximum tilt angle radius | 5 ° |
| Base mounting holes bolt circle | 1.57 in in |
| Product description | Model : RCS302
|
| Weight (kg) | 6.773000 |
