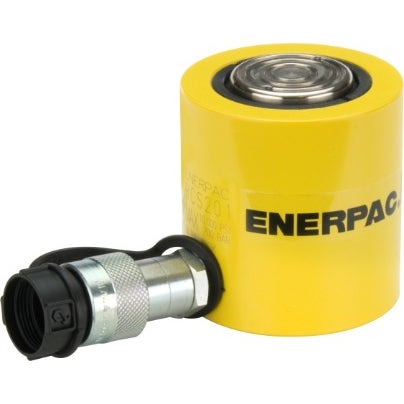

Enerpac RCS201 Low Height Hydraulic Cylinder
SGD1,027.52
SKU
ENP-RCS-201
Enerpac RCS201 20 Ton Capacity, 1.75 in Stroke. Single-Acting Low Height Hydraulic Cylinder Reliable quality for your needs. Buy now!!
Model : RCS201
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- CR400 coupler and dust cap included on all models
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
- Single-acting spring return
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 20 Ton |
| Stroke | 1.75 in |
| Collapsed height | 3.88 in |
| Extended height | 5.63 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 4.43 in² |
| Oil capacity | 7.75 in³ |
| Surface treatment | Paint |
| Optional tilt saddle addition to collapsed height | 0.98 in |
| Cylinder outside diameter | 3.63 in |
| Cylinder bore diameter | 2.38 in |
| Plunger diameter | 2 in |
| Base to advance port | 0.69 in |
| Saddle diameter | 1.97 in |
| Saddle protrusion from plunger | 0.13 in |
| Saddle maximum tilt angle radius | 5 ° |
| Base mounting holes bolt circle | 1.57 in in |
| Product description | Model : RCS201
|
| Weight (kg) | 5.023000 |
