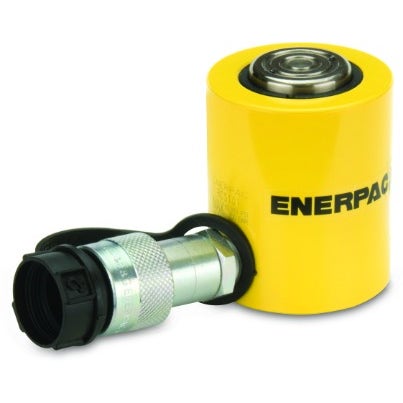

Enerpac RCS101 Low Height Hydraulic Cylinder
SGD718.71
SKU
ENP-RCS-101
Enerpac RCS101 10 Ton Capacity, 1.5 in Stroke. Single-Acting Low Height Hydraulic Cylinder Reliable quality for your needs. Buy now!!
Model : RCS101
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- CR400 coupler and dust cap included on all models
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
- Single-acting spring return
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 10 Ton |
| Stroke | 1.5 in |
| Collapsed height | 3.47 in |
| Extended height | 4.97 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 2.24 in² |
| Oil capacity | 3.35 in³ |
| Surface treatment | Paint |
| Optional tilt saddle addition to collapsed height | 0.79 in |
| Cylinder outside diameter | 2.75 in |
| Cylinder bore diameter | 1.69 in |
| Plunger diameter | 1.5 in |
| Base to advance port | 0.69 in |
| Saddle diameter | 1.38 in |
| Saddle protrusion from plunger | 0.2 in |
| Saddle maximum tilt angle radius | 5 ° |
| Base mounting holes bolt circle | 1.03 in in |
| Weight (kg) | 2.682000 |
