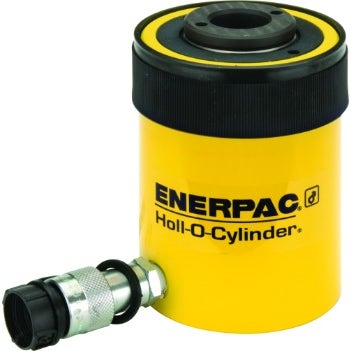

Enerpac RCH302 Hollow Plunger Hydraulic Cylinder
SGD1,973.49
SKU
ENP-RCH-302
Enerpac RCH302 30 Ton Capacity, 2.5 in Stroke. Single-Acting Hollow Plunger Hydraulic Cylinder Reliable quality for your needs. Buy now!!
Model : RCH302
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
- Features CR400 Coupler
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 30 Ton |
| Stroke | 2.5 in |
| Collapsed height | 7.03 in |
| Extended height | 9.53 in |
| Return type | Single-Acting |
| Plunger type | Hollow |
| Body material | Steel |
| Effective area | 7.22 in² |
| Oil capacity | 18.05 in³ |
| Surface treatment | Paint |
| Cylinder outside diameter | 4.5 in |
| Cylinder bore diameter | 3.5 in |
| Plunger diameter | 2.5 in |
| Base to advance port | 0.85 in |
| Saddle diameter | 2.5 in |
| Saddle protrusion from plunger | 0.38 in |
| Base mounting holes bolt circle | 3.63 in in |
| Base mounting holes thread | 3/8"-16 unc |
| Collar thread | 4 1/2" - 12 |
| Collar thread length | 1.66 in |
| Base mounting holes thread depth | 0.55 in |
| Product description | Model : RCH302
|
| Weight (kg) | 10.682000 |
