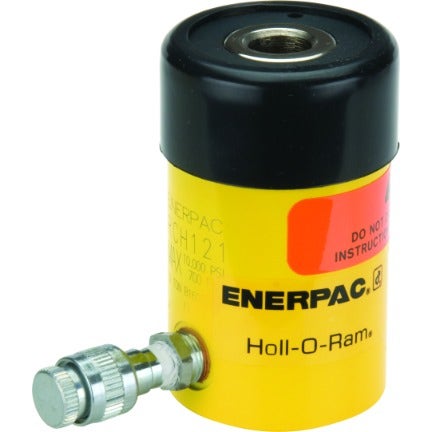

Enerpac RCH121 Hollow Plunger Hydraulic Cylinder
SGD1,155.12
SKU
ENP-RCH-121
Enerpac RCH121 12 Ton Capacity, 1.63 in Stroke. Single-Acting Hollow Plunger Hydraulic Cylinder Reliable quality for your needs. Buy now!!
Model : RCH121
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
- Has FZ1630 reducer and AR630 coupler
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 12 Ton |
| Stroke | 1.63 in |
| Collapsed height | 4.75 in |
| Extended height | 6.38 in |
| Return type | Single-Acting |
| Plunger type | Hollow |
| Body material | Steel |
| Effective area | 2.76 in² |
| Oil capacity | 4.49 in³ |
| Surface treatment | Paint |
| Cylinder outside diameter | 2.75 in |
| Cylinder bore diameter | 2.13 in |
| Plunger diameter | 1.38 in |
| Base to advance port | 0.98 in |
| Collar thread | 2 3/4" - 16 |
| Collar thread length | 1.19 in |
| Product description | Model : RCH121
|
| Weight (kg) | 2.818000 |
