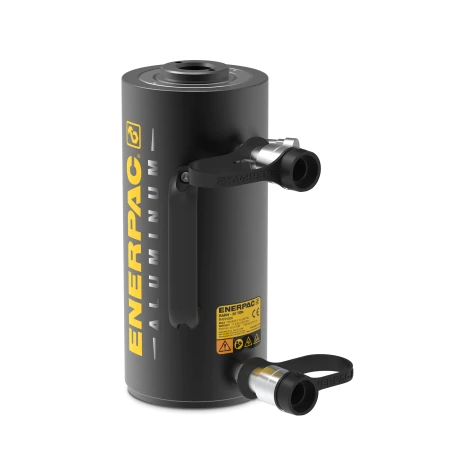

Enerpac RARH3010 Aluminum Hollow Plunger Hydraulic Cylinder
SGD5,257.15
SKU
ENP-RARH-3010
Enerpac RARH3010, 30 Ton Capacity, 9.84 in Stroke. Double-Acting Aluminum Hollow Plunger Hydraulic Cylinder. Reliable quality for your needs. Buy now!!
Model: RARH3010
- Lighter and shorter collapsed height than equivalent RACH models
- Double-acting for rapid retraction, regardless of hose lengths or system losses
- Built-in safety valve prevents accidental over-pressurization
- Hollow plunger design allows for both pull and push forces
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles and CR-400 couplers with dust caps included on all models
- Floating center tube increases seal life
- Steel baseplate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- All cylinders meet ASME B-30.1 standards
| Maximum Operating Pressure | 10150 PSI |
|---|---|
| Capacity | 30 Ton |
| Stroke | 9.84 in |
| Collapsed height | 16.1 in |
| Extended height | 25.94 in |
| Return type | Double-Acting |
| Plunger type | Hollow |
| Body material | Aluminum |
| Effective area | 7.94 in² |
| Oil capacity | 78.15 in³ |
| Surface treatment | Anodized |
| Cylinder outside diameter | 5.31 in |
| Cylinder bore diameter | 3.74 in |
| Plunger diameter | 2.95 in |
| Base to advance port | 0.86 in |
| Saddle diameter | 2.49 in |
| Saddle protrusion from plunger | 0.38 in |
| Base mounting holes bolt circle | 4.33 in in |
| Base mounting holes thread depth | 0.47 in |
| Product description | Model: RARH3010
|
| Weight (kg) | 14.909000 |
