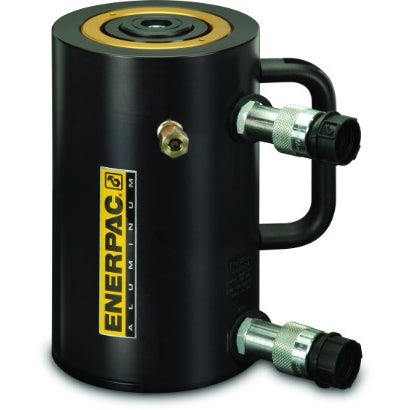

Enerpac RAR504 Aluminum Hydraulic Cylinder
SGD4,001.13
SKU
ENP-RAR-504
Enerpac RAR504 50 Ton Capacity, 3.94 in Stroke. Double-Acting Aluminum Hydraulic Cylinder Reliable quality for your needs. Buy now!!
Model : RAR504
- Double-acting for rapid retraction, regardless of hose lengths and system losses
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Steel base plate and saddle for protection against load- induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- Built-in safety valve prevents accidental over-pressurization
Maximum Operating Pressure | 10000 PSI |
---|---|
Capacity | 50 Ton |
Stroke | 3.94 in |
Collapsed height | 9.89 in |
Extended height | 13.83 in |
Return type | Double-Acting |
Plunger type | Solid |
Body material | Aluminum |
Effective area | 10.99 in² |
Oil capacity | 43.3 in³ |
Surface treatment | Anodized |
Optional tilt saddle addition to collapsed height | 0.55 in |
Optional tilt saddle diameter | 2.8 in |
Cylinder outside diameter | 5.71 in |
Cylinder bore diameter | 3.74 in |
Plunger diameter | 2.95 in |
Base to advance port | 1.19 in |
Saddle diameter | 1.97 in |
Saddle protrusion from plunger | 0.12 in |
Saddle maximum tilt angle radius | 5 ° |
Weight (kg) | 13.318000 |
