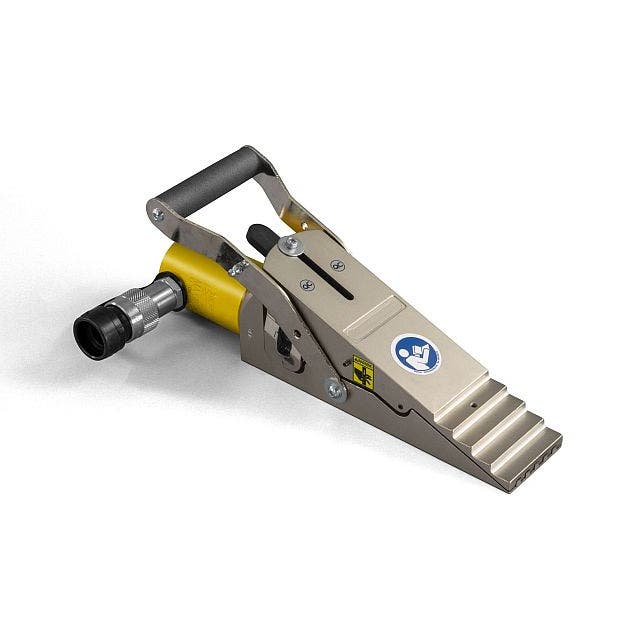

Enerpac LW16 Hydraulic Vertical Lifting Wedge
SGD4,483.97
SKU
ENP-LW-16
Enerpac LW16, 16 Ton, Vertical Lifting Wedge, 0.83 in Lifting Height. Reliable quality for your needs. Buy now!!
Model: LW16
- Minimized access gap for greater accessibility on applications with limited insertion space
- Secure, stable lifting and lowering motion with no slippage
- Single-acting spring return cylinder allows for automatic, mechanical retraction
- Includes safety block SB2
- To power your Enerpac LW16 Lifting Wedge, the Enerpac P392. Hand Pump or P392FP Foot Pump is an ideal choice.
Maximum Operating Pressure | 10000 PSI |
---|---|
Oil capacity | 4.75 in³ |
Stroke | 0.83 in |
Maximum lift Per Stage | 21 |
Maximum lifting force | 16 Ton |
Maximum lifting height | 2.72 in |
Maximum spread | 0.83 in |
Spreading force | 16 Ton |
Tip Clearance | 0.39 in |
Power source | Hydraulic |
Weight (kg) | 10.636000 |
