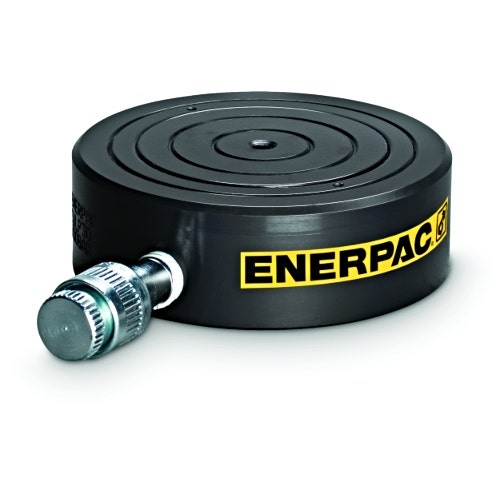

Enerpac CULP50 Ultra Flat Hydraulic Cylinder with Stop-Ring
SGD1,422.37
SKU
ENP-CULP-50
Enerpac CULP50 50 Ton Capacity, 0.24 in Stroke, Single-Acting Ultra Flat Hydraulic Cylinder with Stop-Ring. Reliable quality for your needs. Buy now!!
Model : CULP50
- Up to 4% side load of maximum capacity
- Stop-ring for maximum stroke limitation
- Extremely low collapsed height
- Nitrocarburized surface treatment for harsh conditions
- Coupler AR630 including dustcap: Use HB7206 hose including AH630 coupler to connect to your pump
| Maximum Operating Pressure | 10150 PSI |
|---|---|
| Capacity | 50 Ton |
| Stroke | 0.24 in |
| Collapsed height | 1.75 in |
| Extended height | 1.99 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 12.17 in² |
| Oil capacity | 2.88 in³ |
| Surface treatment | Nitride |
| Cylinder outside diameter | 5.51 in |
| Cylinder bore diameter | 3.94 in |
| Product description | Model : CULP50
|
| Weight (kg) | 5.409000 |
