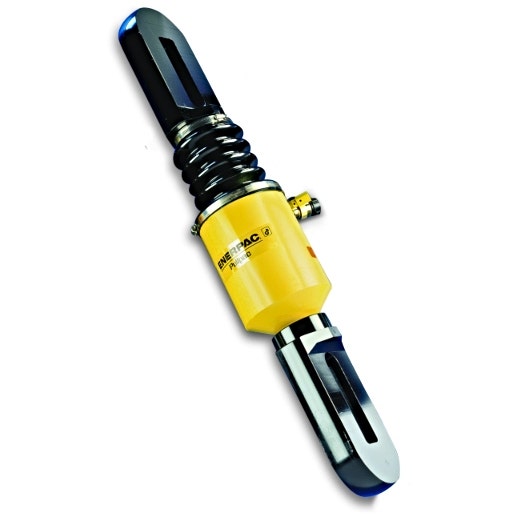

Enerpac BRP606 Pull Hydraulic Cylinder
SGD12,070.26
SKU
ENP-BRP-606
Enerpac BRP606 60 Ton Capacity, 6 in Stroke, Single-Acting Pull Hydraulic Cylinder. Reliable quality for your needs. Buy now!!
Model : BRP606
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- CR-400 coupler and dust cap included on all models
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Single-acting spring return
- Replaceable links
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 60 Ton |
| Stroke | 6 in |
| Collapsed height | 28.28 in |
| Extended height | 34.28 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 11.17 in² |
| Oil capacity | 67.02 in³ |
| Surface treatment | Paint |
| Cylinder outside diameter | 5.51 in |
| Cylinder bore diameter | 4.33 in |
| Saddle diameter | 5.12 in |
| Product description | Model : BRP606
|
| Weight (kg) | 65.909000 |
