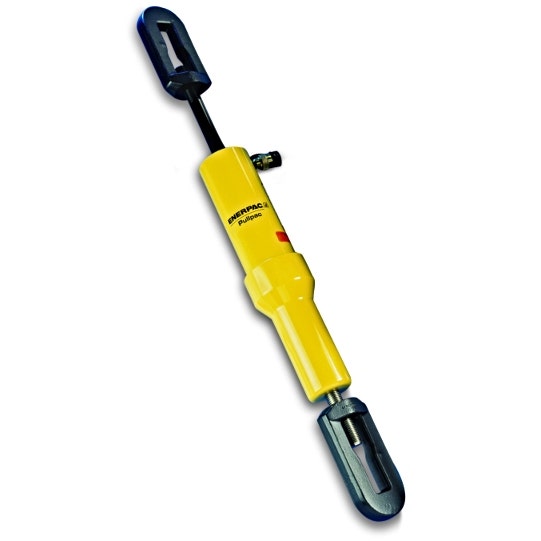

Enerpac BRP306 Pull Hydraulic Cylinder
SGD6,671.89
SKU
ENP-BRP-306
Enerpac BRP306 30 Ton Capacity, 6.1 in Stroke, Single-Acting Pull Hydraulic Cylinder. Reliable quality for your needs. Buy now!!
Model : BRP306
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- CR-400 coupler and dust cap included on all models
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Single-acting spring return
- Replaceable links
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 30 Ton |
| Stroke | 6.1 in |
| Collapsed height | 43.71 in |
| Extended height | 49.71 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 7.19 in² |
| Oil capacity | 43.63 in³ |
| Surface treatment | Paint |
| Cylinder outside diameter | 5.39 in |
| Cylinder bore diameter | 3.5 in |
| Saddle diameter | 4.49 in |
| Product description | Model : BRP306
|
| Weight (kg) | 56.818000 |
