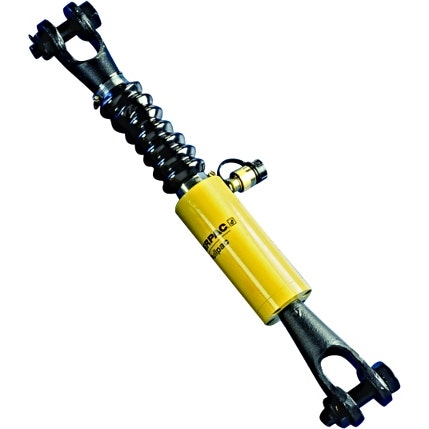

Enerpac BRP106C Pull Hydraulic Cylinder
SGD4,315.82
SKU
ENP-BRP-106C
Enerpac BRP106C 10 Ton Capacity, 5.91 in Stroke, Single-Acting Pull Hydraulic Cylinder. Reliable quality for your needs. Buy now!!
Model : BRP106C
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- CR-400 coupler and dust cap included on all models
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Single-acting spring return
- Replaceable links
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 10 Ton |
| Stroke | 5.91 in |
| Collapsed height | 23.66 in |
| Extended height | 29.57 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 2.45 in² |
| Oil capacity | 14.58 in³ |
| Surface treatment | Paint |
| Cylinder outside diameter | 3.35 in |
| Cylinder bore diameter | 2.13 in |
| Saddle diameter | 4.13 in |
| Product description | Model : BRP106C
|
| Weight (kg) | 15.909000 |
