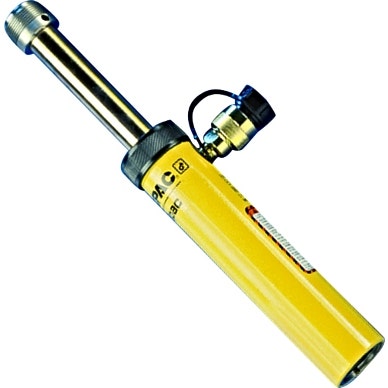

Enerpac BRC46 Pull Hydraulic Cylinder
SGD1,639.34
SKU
ENP-BRC-46
Enerpac BRC46 5 Ton Capacity, 5.5 in Stroke, Single-Acting Pull Hydraulic Cylinder. Reliable quality for your needs. Buy now!!
Model : BRC46
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- CR-400 coupler and dust cap included on all models
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Single-acting spring return
- Replaceable links
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 5 Ton |
| Stroke | 5.5 in |
| Collapsed height | 11.88 in |
| Extended height | 17.38 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 1.13 in² |
| Oil capacity | 6.21 in³ |
| Surface treatment | Paint |
| Cylinder outside diameter | 2.25 in |
| Cylinder bore diameter | 1.69 in |
| Plunger diameter | 1.19 in |
| Base to advance port | 1.69 in |
| Product description | Model : BRC46
|
| Weight (kg) | 4.545000 |
