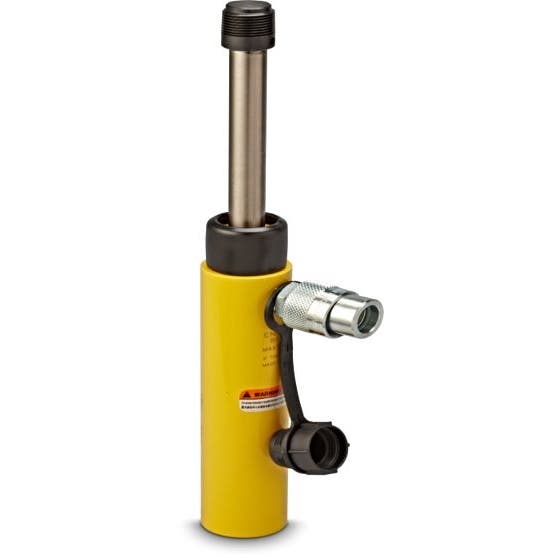

Enerpac BRC25 Pull Hydraulic Cylinder
SGD872.37
SKU
ENP-BRC-25
Enerpac BRC25 2.5 Ton Capacity, 5 in Stroke, Single-Acting Pull Hydraulic Cylinder. Reliable quality for your needs. Buy now!!
Model : BRC25
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- CR-400 coupler and dust cap included on all models
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Single-acting spring return
- Replaceable links
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 2.5 Ton |
| Stroke | 5 in |
| Collapsed height | 10.44 in |
| Extended height | 15.44 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 0.55 in² |
| Oil capacity | 2.76 in³ |
| Surface treatment | Paint |
| Cylinder outside diameter | 1.89 in |
| Cylinder bore diameter | 1.13 in |
| Plunger diameter | 0.75 in |
| Base to advance port | 1.77 in |
| Product description | Model : BRC25
|
| Weight (kg) | 1.818000 |
