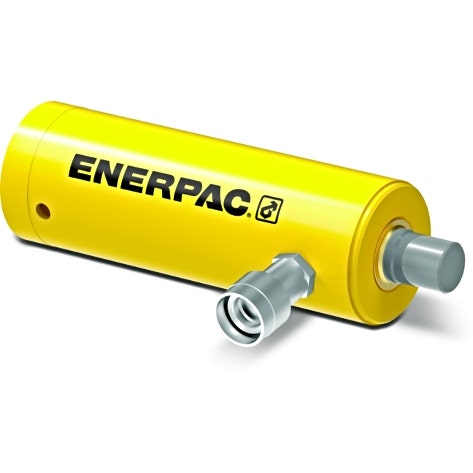

Enerpac BRC106 Pull Hydraulic Cylinder
SGD1,915.77
SKU
ENP-BRC-106
Enerpac BRC106 10 Ton Capacity, 5.95 in Stroke, Single-Acting Pull Hydraulic Cylinder. Reliable quality for your needs. Buy now!!
Model : BRC106
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- CR-400 coupler and dust cap included on all models
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Single-acting spring return
- Replaceable links
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 10 Ton |
| Stroke | 5.95 in |
| Collapsed height | 11.38 in |
| Extended height | 17.33 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 2.32 in² |
| Oil capacity | 13.8 in³ |
| Surface treatment | Paint |
| Cylinder outside diameter | 3.35 in |
| Cylinder bore diameter | 2.13 in |
| Plunger diameter | 1.25 in |
| Base to advance port | 1.57 in |
| Product description | Model : BRC106
|
| Weight (kg) | 9.545000 |
