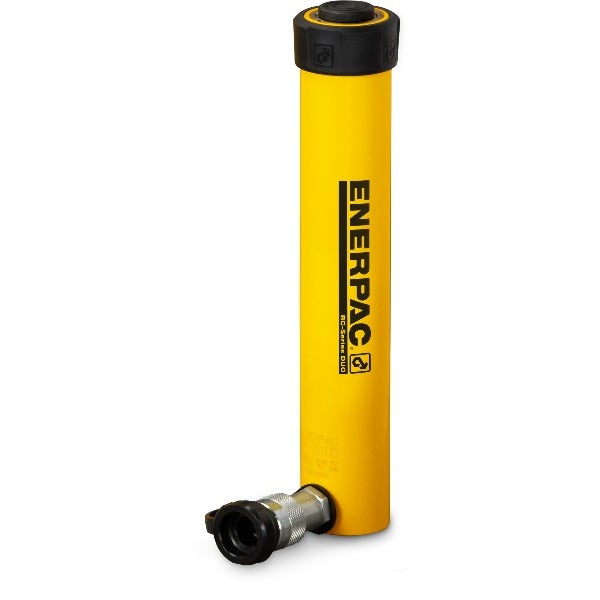

Enerpac RC756 General Purpose Cylinder
SGD4,042.32
SKU
ENP-RC-756
Enerpac RC756 75 Ton Capacity, 6.13 in Stroke. Single-Acting General Purpose Cylinder. Reliable quality for your needs. Buy Now!!
Model : RC756
- Unique GR2 Bearing Design, reduces wear, extending life
- Base mounting holes enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy-duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- CR400 coupler and dust cap included on all models
- Plunger wiper reduces contamination, extending
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 75 Ton |
| Stroke | 6.13 in |
| Collapsed height | 11.25 in |
| Extended height | 17.38 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 15.9 in² |
| Oil capacity | 97.41 in³ |
| Surface treatment | Paint |
| Optional tilt saddle addition to collapsed height | 0.59 in |
| Optional tilt saddle diameter | 2.81 in |
| Cylinder outside diameter | 5.75 in |
| Cylinder bore diameter | 4.5 in |
| Plunger diameter | 3.75 in |
| Base to advance port | 1.19 in |
| Saddle diameter | 2.8 in |
| Saddle protrusion from plunger | 0.11 in |
| Saddle maximum tilt angle radius | 5 ° |
| Base mounting holes bolt circle | 4.5 in in |
| Base mounting holes thread | 5/8"-11 UNC |
| Collar thread | 5 3/4" - 12 UN |
| Collar thread length | 1.75 in |
| Base mounting holes thread depth | 0.63 in |
| Product description | Model : RC756
|
| Weight (kg) | 29.545000 |
