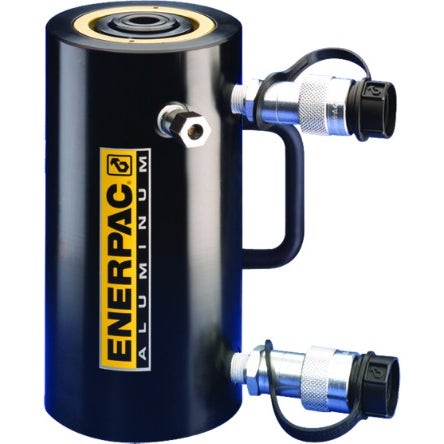

Enerpac RAR502 Aluminum Hydraulic Cylinder

SGD3,099.53

SKU

ENP-RAR-502

/ Piece

Enerpac RAR502 50 Ton Capacity, 1.97 in Stroke. Double-Acting Aluminum Hydraulic Cylinder Reliable quality for your needs. Buy now!!

Model : RAR502

Double-acting for rapid retraction, regardless of hose lengths and system losses
Composite bearings increase cylinder life and side load resistance
Hard coat finish on all surfaces resists damage and extends cylinder life
Handles included on all models
Steel base plate and saddle for protection against load- induced damage
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
Built-in safety valve prevents accidental over-pressurization

More Information
Maximum Operating Pressure	10000 PSI
Capacity	50 Ton
Stroke	1.97 in
Collapsed height	7.92 in
Extended height	9.89 in
Return type	Double-Acting
Plunger type	Solid
Body material	Aluminum
Effective area	10.99 in²
Oil capacity	21.65 in³
Surface treatment	Anodized
Optional tilt saddle addition to collapsed height	0.55 in
Optional tilt saddle diameter	2.8 in
Cylinder outside diameter	5.71 in
Cylinder bore diameter	3.74 in
Plunger diameter	2.95 in
Base to advance port	1.19 in
Saddle diameter	1.97 in
Saddle protrusion from plunger	0.12 in
Saddle maximum tilt angle radius	5 °
Product description	Model : RAR502 Double-acting for rapid retraction, regardless of hose lengths and system losses Composite bearings increase cylinder life and side load resistance Hard coat finish on all surfaces resists damage and extends cylinder life Handles included on all models Steel base plate and saddle for protection against load- induced damage Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity Built-in safety valve prevents accidental over-pressurization
Weight (kg)	14.318000
