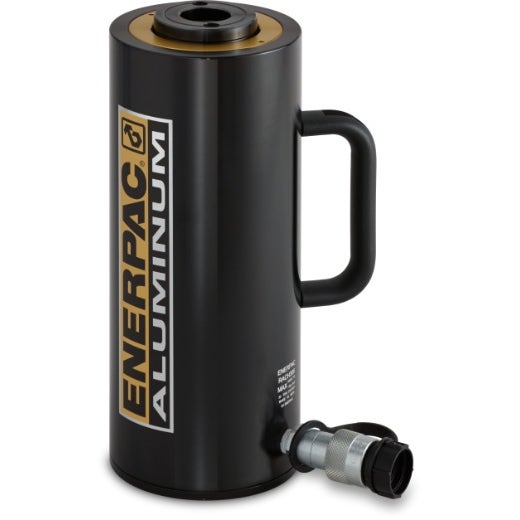

Enerpac RACH308 Aluminum Hollow Plunger Hydraulic Cylinder

SGD3,690.87

SKU

ENP-RACH-308

/ Piece

Enerpac RACH308 30 Ton Capacity, 7.87 in Stroke. Single-Acting Aluminum Hollow Plunger Hydraulic Cylinder Reliable quality for your needs. Buy now!!

Model : RACH308

Hollow plunger design allows for both pull and push forces
Composite bearings increase cylinder life and side load resistance
Hard coat finish on all surfaces resists damage and extends cylinder life
Handles included on all models
Floating center tube increases seal life
Steel baseplate and saddle for protection against load-induced damage
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
High-strength return spring for rapid cylinder retraction
CR400 coupler and dustcap included on all models
All cylinders meet ASME B-30.1 standards

More Information
Maximum Operating Pressure	10000 PSI
Capacity	30 Ton
Stroke	7.87 in
Collapsed height	15.56 in
Extended height	23.43 in
Return type	Single-Acting
Plunger type	Hollow
Body material	Aluminum
Effective area	7.92 in²
Oil capacity	62.35 in³
Surface treatment	Anodized
Cylinder outside diameter	5.12 in
Cylinder bore diameter	3.74 in
Plunger diameter	2.76 in
Base to advance port	1.14 in
Saddle diameter	2.76 in
Saddle protrusion from plunger	0.4 in
Product description	Model : RACH308 Hollow plunger design allows for both pull and push forces Composite bearings increase cylinder life and side load resistance Hard coat finish on all surfaces resists damage and extends cylinder life Handles included on all models Floating center tube increases seal life Steel baseplate and saddle for protection against load-induced damage Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity High-strength return spring for rapid cylinder retraction CR400 coupler and dustcap included on all models All cylinders meet ASME B-30.1 standards
Weight (kg)	13.750000
