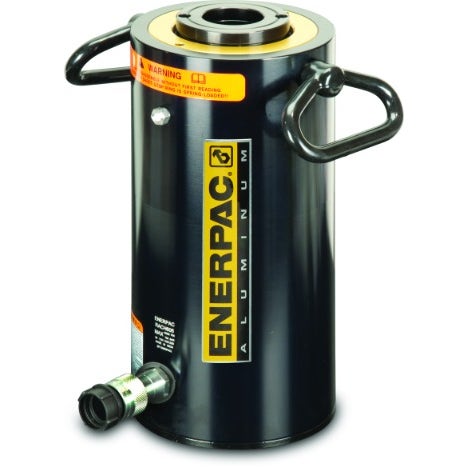

Enerpac RACH1006 Aluminum Hollow Plunger Hydraulic Cylinder
SGD9,944.96
SKU
ENP-RACH-1006
Enerpac RACH1006 100 Ton Capacity, 5.91 in Stroke. Single-Acting Aluminum Hollow Plunger Hydraulic Cylinder Reliable quality for your needs. Buy now!!
Model : RACH1006
- Hollow plunger design allows for both pull and push forces
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Floating center tube increases seal life
- Steel baseplate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR400 coupler and dustcap included on all models
- All cylinders meet ASME B-30.1 standards
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 100 Ton |
| Stroke | 5.91 in |
| Collapsed height | 15.4 in |
| Extended height | 21.31 in |
| Return type | Single-Acting |
| Plunger type | Hollow |
| Body material | Aluminum |
| Effective area | 25.51 in² |
| Oil capacity | 150.64 in³ |
| Surface treatment | Anodized |
| Cylinder outside diameter | 9.84 in |
| Cylinder bore diameter | 7.28 in |
| Plunger diameter | 5.71 in |
| Base to advance port | 2.41 in |
| Saddle diameter | 5.71 in |
| Saddle protrusion from plunger | 0.55 in |
| Product description | Model : RACH1006
|
| Weight (kg) | 73.182000 |
