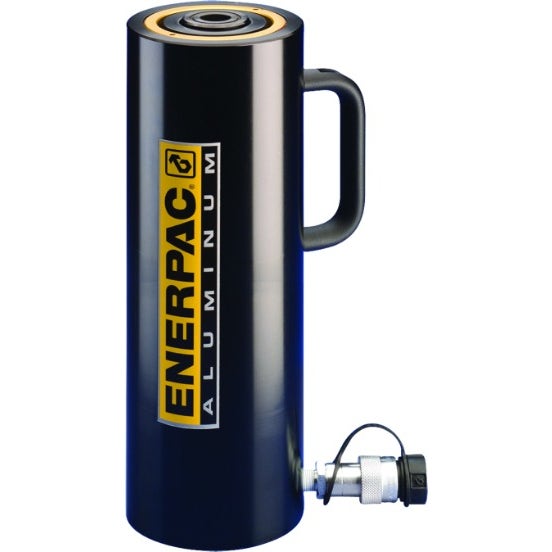

Enerpac RAC1506 Aluminum Hydraulic Cylinder

SGD8,209.60

SKU

ENP-RAC-1506

/ Piece

Enerpac RAC1506 150 Ton Capacity, 5.91 in Stroke. Single-Acting Aluminum Hydraulic Cylinder Reliable quality for your needs. Buy now!!

Model : RAC1506

Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-loads of up to 10%
Hard coat finish on all surfaces resists damage and extends cylinder life
Handles included on all models
Steel baseplate and saddle for protection against load-induced damage
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
High-strength return spring for rapid cylinder retraction
CR400 coupler and dustcap included on all models
All cylinders meet ASME B-30.1 standards

More Information
Maximum Operating Pressure	10000 PSI
Capacity	150 Ton
Stroke	5.91 in
Collapsed height	13.49 in
Extended height	19.41 in
Return type	Single-Acting
Plunger type	Solid
Body material	Aluminum
Effective area	35.18 in²
Oil capacity	207.91 in³
Surface treatment	Anodized
Optional tilt saddle addition to collapsed height	0.71 in
Optional tilt saddle diameter	4.96 in
Cylinder outside diameter	9.06 in
Cylinder bore diameter	6.69 in
Plunger diameter	5.51 in
Base to advance port	2.02 in
Saddle diameter	4.45 in
Saddle protrusion from plunger	0.12 in
Saddle maximum tilt angle radius	5 °
Base mounting holes bolt circle	7.87 in in
Product description	Model : RAC1506 Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-loads of up to 10% Hard coat finish on all surfaces resists damage and extends cylinder life Handles included on all models Steel baseplate and saddle for protection against load-induced damage Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity High-strength return spring for rapid cylinder retraction CR400 coupler and dustcap included on all models All cylinders meet ASME B-30.1 standards
Weight (kg)	47.500000
