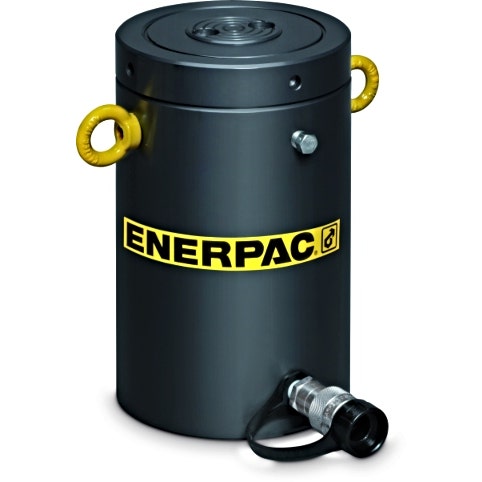

Enerpac HCL1008 High Tonnage Lock Nut Hydraulic
SGD0.00
SKU
ENP-HCL-1008
Enerpac HCL1008 110 Ton Capacity, 7.87 in Stroke, Single-Acting High Tonnage Lock Nut Hydraulic Cylinder. Reliable quality for your needs. Buy now!!
Model : HCL1008
- Lock nut provides positive and safe mechanical load holding
- Low friction locking rings spin easy, save time and effort
- Designed to withstand 10% side-load up to 90% of maximum stroke
- Hardened surface resists side-loading and cyclic wear
- Overflow port as stroke limiter to prevent plunger blow-out
- Weather protected, inside and out
- Replaceable bearings enclose the plunger for support throughout the stroke
- Certified lifting eyes and base mounting holes
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 100 Ton |
| Stroke | 7.87 in |
| Collapsed height | 13.27 in |
| Extended height | 21.14 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 22.19 in² |
| Oil capacity | 174.7 in³ |
| Surface treatment | Nitride |
| Optional tilt saddle addition to collapsed height | 0.59 in |
| Optional tilt saddle diameter | 2.8 in |
| Cylinder outside diameter | 6.89 in |
| Cylinder bore diameter | 5.31 in |
| Base to advance port | 1.3 in |
| Saddle diameter | 2.8 in |
| Saddle protrusion from plunger | 0.08 in |
| Saddle maximum tilt angle radius | 5 ° |
| Product description | Model : HCL1008
|
| Weight (kg) | 63.182000 |
