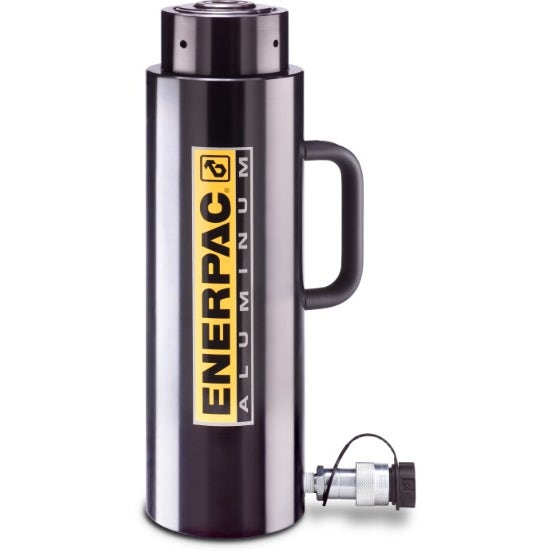

Enerpac RACL1002 Aluminum Lock Nut Hydraulic Cylinder
SGD5,224.82
SKU
ENP-RACL-1002
Enerpac RACL1002 100 Ton Capacity, 1.97 in Stroke. Single-Acting Aluminum Lock Nut Hydraulic Cylinder Reliable quality for your needs. Buy now!!
Model : RACL1002
- Aluminum Lock Nut provides mechanical load holding for extended periods
- Hardened steel stop ring increases cylinder life and resistance to side-loads of up to 5%
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Composite bearings increase cylinder life and side load resistance
- Handles included on all models
- Steel base plate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR400 coupler and dustcap included on all models
- All cylinders meet ASME B-30.1 standards
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 100 Ton |
| Stroke | 1.97 in |
| Collapsed height | 11.65 in |
| Extended height | 13.63 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Aluminum |
| Effective area | 22.19 in² |
| Oil capacity | 43.71 in³ |
| Surface treatment | Anodized |
| Optional tilt saddle addition to collapsed height | 0.75 in |
| Optional tilt saddle diameter | 3.82 in |
| Cylinder outside diameter | 7.09 in |
| Cylinder bore diameter | 5.32 in |
| Plunger diameter | 4.33 in |
| Base to advance port | 1.82 in |
| Saddle diameter | 3.7 in |
| Saddle protrusion from plunger | 0.12 in |
| Saddle maximum tilt angle radius | 5 ° |
| Product description | Model : RACL1002
|
| Weight (kg) | 25.545000 |
