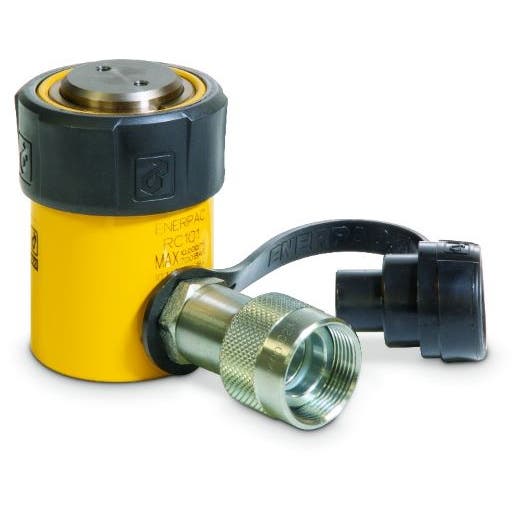

Enerpac RC101 General Purpose Cylinder
SGD584.64
SKU
ENP-RC-101
Enerpac RC101 10 Ton Capacity, 1 in Stroke. Single-Acting General Purpose Cylinder. Reliable quality for your needs. Buy Now!!
Model : RC101
- Unique GR2 Bearing Design, reduces wear, extending life
- Base mounting holes enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy-duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- CR400 coupler and dust cap included on all models
- Plunger wiper reduces contamination, extending
| Maximum Operating Pressure | 10000 PSI |
|---|---|
| Capacity | 10 Ton |
| Stroke | 1 in |
| Collapsed height | 3.53 in |
| Extended height | 4.53 in |
| Return type | Single-Acting |
| Plunger type | Solid |
| Body material | Steel |
| Effective area | 2.24 in² |
| Oil capacity | 2.24 in³ |
| Surface treatment | Paint |
| Cylinder outside diameter | 2.25 in |
| Cylinder bore diameter | 1.69 in |
| Plunger diameter | 1.5 in |
| Base to advance port | 0.75 in |
| Base mounting holes bolt circle | 1.56 in in |
| Base mounting holes thread | 5/16" - 18 UN |
| Collar thread | 2 1/4" - 14 UN |
| Collar thread length | 1.06 in |
| Base mounting holes thread depth | 0.5 in |
| Product description | Model : RC101
|
| Weight (kg) | 1.932000 |
