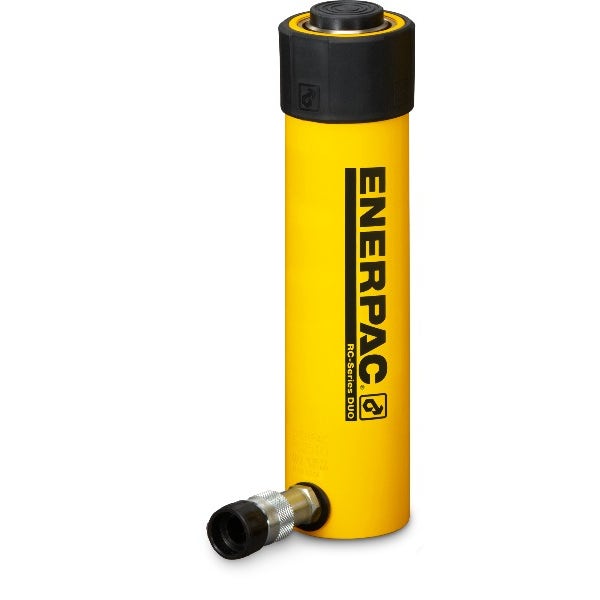

Enerpac RC158 General Purpose Cylinder

SGD1,106.56

SKU

ENP-RC-158

/ Piece

Enerpac RC158 15 Ton Capacity, 8 in Stroke. Single-Acting General Purpose Cylinder. Reliable quality for your needs. Buy Now!!

Model : RC158

More Information
Maximum Operating Pressure	10000 PSI
Capacity	15 Ton
Stroke	8 in
Collapsed height	12.69 in
Extended height	20.69 in
Return type	Single-Acting
Plunger type	Solid
Body material	Steel
Effective area	3.14 in²
Oil capacity	25.13 in³
Surface treatment	Paint
Optional tilt saddle addition to collapsed height	0.43 in
Optional tilt saddle diameter	1.38 in
Cylinder outside diameter	2.75 in
Cylinder bore diameter	2 in
Plunger diameter	1.63 in
Base to advance port	1 in
Saddle diameter	1.5 in
Saddle protrusion from plunger	0.38 in
Saddle maximum tilt angle radius	5 °
Base mounting holes bolt circle	1.88 in in
Base mounting holes thread	3/8" - 16 UN
Collar thread	2 3/4" - 16 UN
Collar thread length	1.19 in
Base mounting holes thread depth	0.5 in
Product description	Model : RC158 Unique GR2 Bearing Design, reduces wear, extending life Base mounting holes enable easy fixturing Designed for use in all positions High strength alloy steel for durability Redesigned cylinder thread protector for ease of use Heavy-duty, pretensioned spring improves retraction speed Baked enamel finish for increased corrosion resistance CR400 coupler and dust cap included on all models Plunger wiper reduces contamination, extending
Weight (kg)	8.159000
